Motivation

Beside the reliability and integrity of a backup I’d want to ensure that all backed up data are not acessible by third parties.

Requirements

• Backblaze B2 Cloud Storage account
• Ubuntu 16.04 LTS

Setup

Preparation

I presume that there’s a running minimal Ubuntu Xenial installation with a directory /mnt/backup which should be backed up to Backblaze.

Installation

Install necessary software:

• apt-get install software-properties-common gnupg2 gnupg-agent python-pip
• add-apt-repository ppa:duplicity-team/ppa
• apt-get install duplicity
• pip install b2

Then create a new GPG key which is dedicated to backup encryption. For details about key generation check the Ubuntu GPG HowTo out.

Create a backup script which is triggered regularly by cron or something else:

!/usr/bin/env bash

APPLICATION_KEY="000000000000000000000000000000000000000000"
APPLICATION_SECRET="000000000000000000000000000000000000000000"
KEYID="FFFFFFFFFFFFFFFF"
FULL_AGE="90D"
FULL_BACKUPS="2"
LOCKFILE="/tmp/duplicity.lock"
GPGBINARY="/usr/bin/gpg"
OPTIONS="-v0 --no-print-statistics" # because there is no --quiet

## ^ config ends here ^ ##

OPTIONS="${OPTIONS} --gpg-binary=${GPGBINARY} --tempdir=/mnt/backup/tmp --archive-dir=/mnt/backup/.duplicity --use-agent"

if [ "$1" = "unlock" ]; then
  gpg-connect-agent /bye
  ${GPGBINARY} -sanu ${KEYID} "$0"
  exit $?
fi

if [ -f ${LOCKFILE:?} ]; then
  echo >&2 "Other instance active. Abort"
  exit 1
fi

function finish {
  rm -rf ${LOCKFILE:?}
}
trap finish EXIT
echo $$ > ${LOCKFILE:?}

## Transfer to b2
## There's a bug in duplicity which prevents us from adding more then one backup into one bucket.
## Therefore each backup has it's own bucket. See https://bugs.launchpad.net/duplicity/+bug/1523498
cd /mnt/backup/
for BACKUPPATH in dom0 www static vms/*; do
  BUCKET=your-prefix-${BACKUPPATH#vms/}
  BUCKET=$(tr . - <<< ${BUCKET})
  duplicity ${OPTIONS} --name=${BUCKET:?} --encrypt-key=${KEYID} --asynchronous-upload --full-if-older-than=${FULL_AGE:?} --num-retries=10 ${BACKUPPATH:?} b2://${APPLICATION_KEY}:${APPLICATION_KEY_SECRET}@${BUCKET} &&
  duplicity ${OPTIONS} --name=${BUCKET:?} --force remove-all-but-n-full ${FULL_BACKUPS:?} b2://${APPLICATION_KEY}:${APPLICATION_KEY_SECRET}@${BUCKET}
done

Duplicity uses your GPG key to en- and decrypt all data, even the meta data. But keep in mind, that it keeps a copy of the decrypted meta data on the local disk (defaults to ~/.cache/duplicity) and utilizes a temporary directory. If just a part of your disk is encrypted (instead of FDE) adapt the script to point those locations (option --tempdir and --archive-dir) to the encrypted part.

Duplicity needs access to your private key to decrypt those metadata, therefore the script utilizes gpg-agent to unlock the key and keep it in an agent session. So after rebooting the machine or killing the agent ensure that you call the script with unlock as parameter and provide the GPG key passphrase to load it into the agent session. Afterwards duplicity uses the agent to access the key for all operations which depend on it.

The gpg-agent won’t talk with duplicity until loopback pin entry is allowed. Also the agent caches each entry just for 600s per default. The documentation tells that the timeout is reset each time the entry is accessed, my personal experience doesn’t confirm this. Therefore I’ve set the tiemout to 315360000 seconds (10 years). Execute the following command to add the necessary setting to your local gpg-agent.conf: echo -e 'allow-loopback-pinentry\ndefault-cache-ttl 315360000 #10y\nmax-cache-ttl 315360000' >> ~/.gnupg/gpg-agent.conf

I’d like to separate the different logical parts of my backup into different sets. Therefore the script above creates a new backup (and bucket) for each folder in /mnt/backup.
All my VMs create automatic backups in subfolders of /mnt/backup/vms and the script applies some “Voodoo” to map the VM names to valid B2 bucket names. You can ignore this part if you don’t need it.

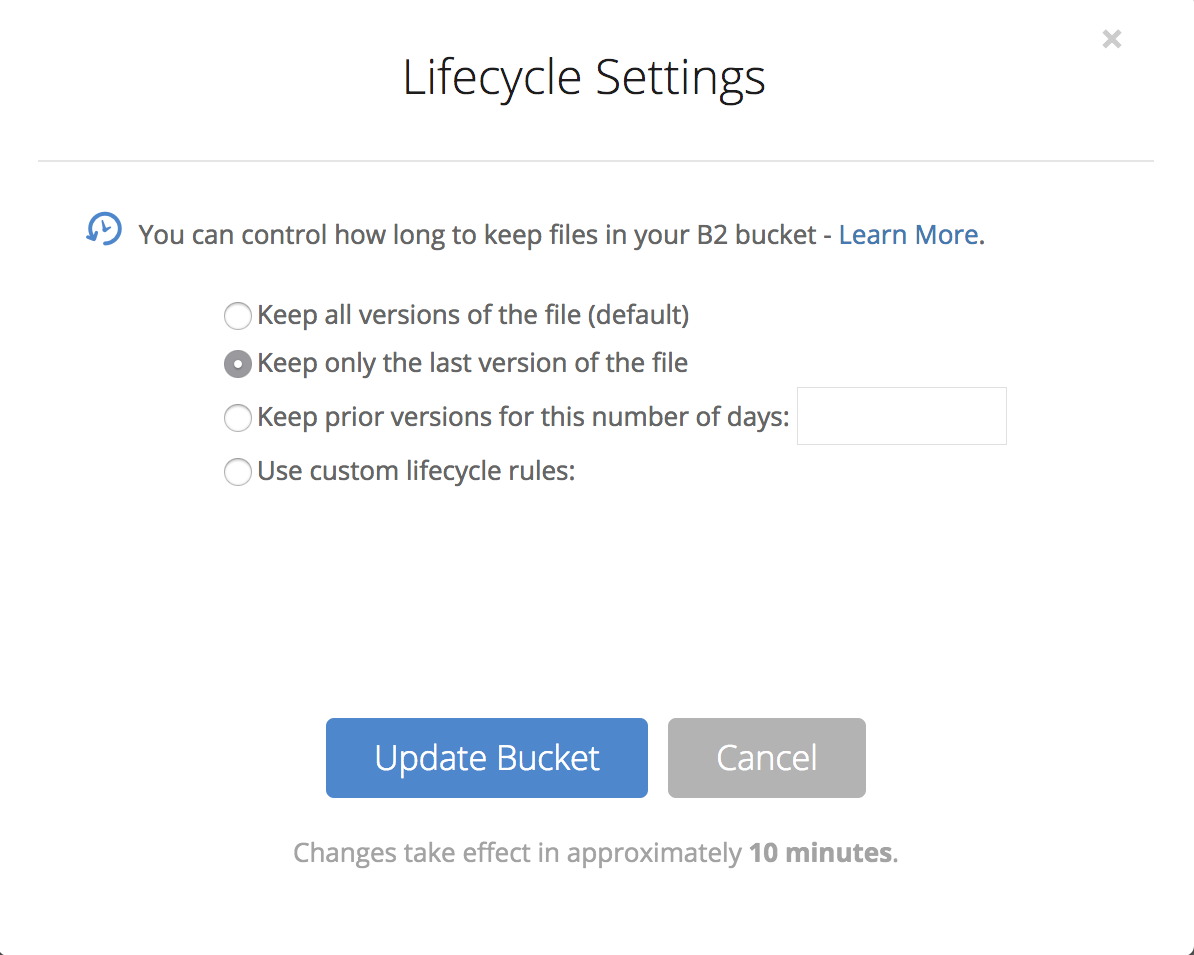

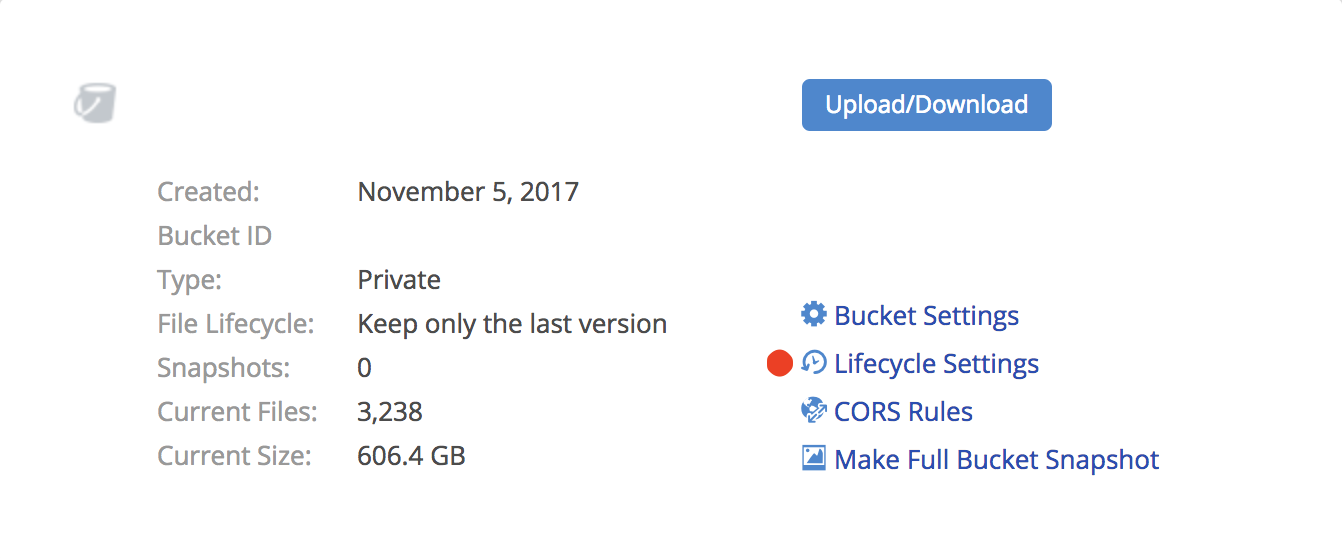

If the target bucket is not created yet, it will be created automatically. New B2 buckets are per default private, that’s fine but they are also configured to keep all versions of all files in the bucket. I’m pretty sure you don’t want to keep all backup files even if they are already deleted by duplicity. So after adding new folders (aka creating new buckets) login to yout Backblaze account and update the settings of the new bucket.

Configuration

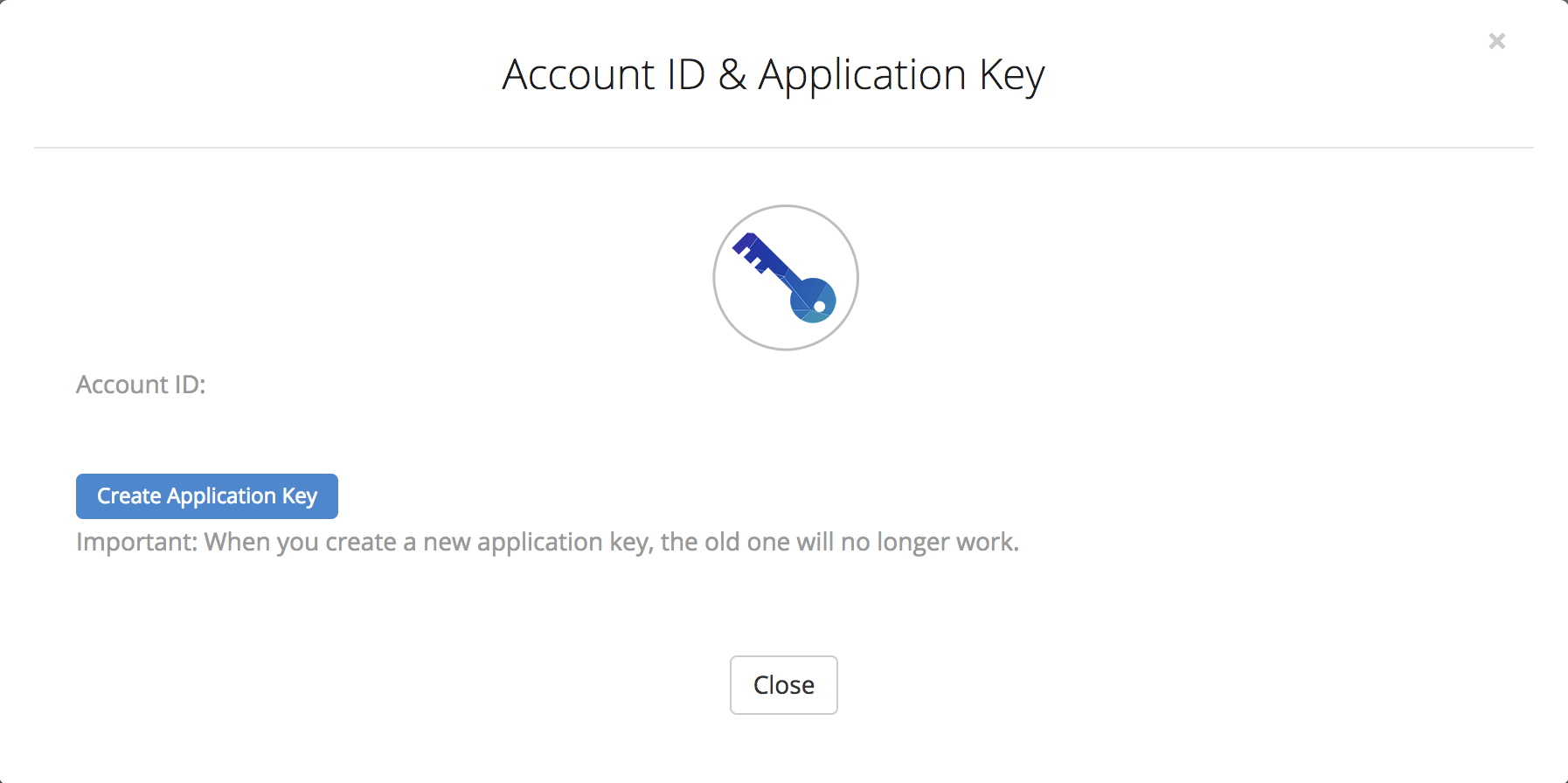

• ACCOUNTID and APPLICATION_KEY must be changed to your personal B2 account ID and application key:
• KEYID must be changed to the ID of your generated GPG key
• FULL_AGE defines after which time a new full backup will be triggered. For valid values check the duplicity man page (section TIME FORMATS)
• FULL_BACKUPS defines how many full backups should be keept before deleting old ones

Per default duplicity is quite noisy and logs some stuff like statistics, etc. It has no --quiet option but can be silenced with -v0 --no-print-statistics (see OPTIONS variable)

Restore a backup

To restore a previously created backup just adapt the following command to your needs and keep your GPG key passphrase on hand:
duplicity --tempdir=/mnt/backup/tmp --archive-dir=/mnt/backup/.duplicity restore b2://${APPLICATION_KEY}:${APPLICATION_KEY_SECRET}@${BUCKET} /mnt/backup/restore

If you just need some files from the backup add the option --file-to-restore <RELATIVE_PATH> to the restore command above.
